Towable Boom Lift
1. Powered by either a DC motor or a diesel engine.
2. Possess extraordinary capabilities of ascending, moving, and extending in complex work environments.
3. Easily access elevated work areas when there are obstacles or barriers in the work zone.
Trailer mounted spider Lift is specifically designed for those horizontal and vertical hard-to-reach high-up, aerial working jobs.This type of machine could be easily towed by tractors,forklifts and other towing vehicles, from one place to another, it could be powered by the battery group,diesel engine and local 3 phases AC power supply.
1.Parameters
Model | TSP0.2-8 | TSP0.2-10 | TSP0.2-12 | TSP0.2-14 | TSP0.2-16 | TSP0.2-18 |
Platform height | 8m | 10m | 12m | 14m | 16m | 18m |
Working height | 10m | 12m | 14m | 16m | 18m | 20m |
Load capacity | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg |
Platform size | 900*700mm | 900*700mm | 900*700mm | 900*700mm | 900*700mm | 900*700mm |
Dimensions(mm) | 5400*1600*900 | 5400*1600*900 | 5800*1800*2200 | 6550*1660*2130 | 7000*1800*2250 | 7200*1800*2300 |
Weight | 1600kg | 1600kg | 1800kg | 2500kg | 2800kg | 3800kg |
Telescopic boom | No | No | Yes | Yes | Yes | Yes |
Working radius | 4.5m | 5.5m | 7.5m | 8.5m | 10m | 11.5m |
2.Product Details

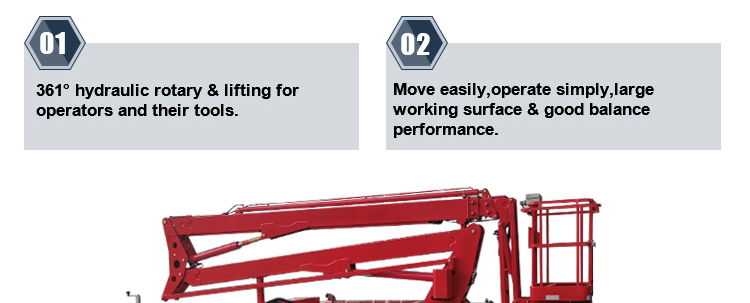

3.Product Features
4.Packing Detail
