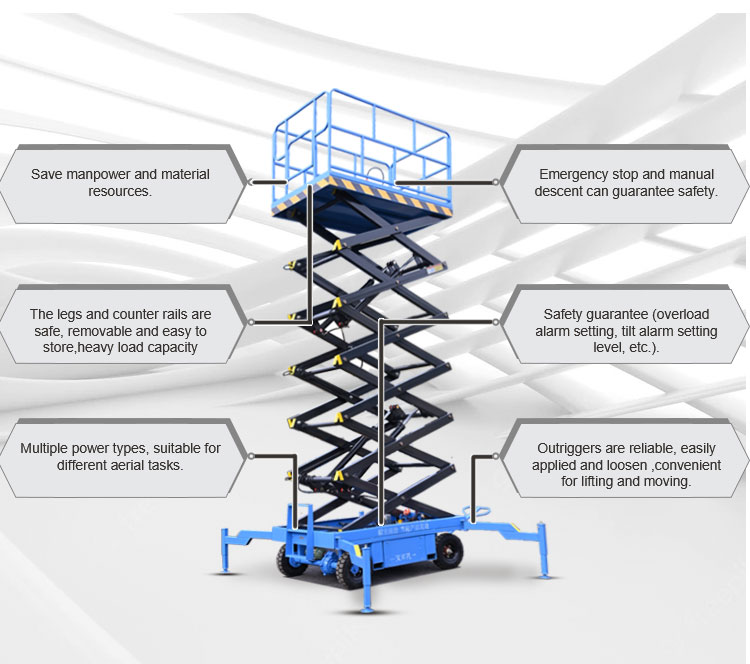

Manual Mobile Scissor Lift
Mobile Scissor Lift is especially for aerial working requirements.It can be pushed-around manually,it could be towed by the towing vehicles like forklift,tractor,electric/diesel tricycles.Also it could be equipped with battery-driven moving system to get the move easier. Lifting power could be AC, DC or gasoline/diesel engine, or the mixture of all the above methods.It is widely used in indoor and outdoor cleaning, maintenance,installation and so on.
Mobile Scissor Lift is especially for aerial working requirements.It can be pushed-around manually,it could be towed by the towing vehicles like forklift,tractor,electric/diesel tricycles.Also it could be equipped with battery-driven moving system to get the move easier. Lifting power could be AC, DC or gasoline/diesel engine, or the mixture of all the above methods.It is widely used in indoor and outdoor cleaning, maintenance,installation and so on.
1.Parameters
Model | Table size mm | Load Capacity | Lifting Height | Machine size | Machine Wt./kg |
SJY0.5-4 | 2100*800 | 500kg | 4m | 2260*950*1100 | 800 |
SJY0.5-6 | 2100*800 | 500 | 6m | 2260*950*1210 | 850 |
SJY0.5-8 | 2100*900 | 500kg | 8m | 2260*1050*1330 | 1050 |
SJY0.5-9 | 2100*900 | 500kg | 9m | 2260*1050*1450 | 1165 |
SJY0.5-10 | 2100*1200 | 500kg | 10m | 2300*1350*1480 | 1300 |
SJY0.3-11 | 2100*1200 | 300kg | 11m | 2300*1350*1600 | 1400 |
SJY0.5-12 | 2550*1500 | 500kg | 12m | 2750*1720*1750 | 2060 |
SJY0.5-14 | 2800*1500 | 500kg | 14m | 3000*1720*1750 | 2400 |
SJY0.3-16 | 2815*1600 | 300kg | 16m | 3100*1880*2080 | 3300 |
SJY0.3-18 | 3100*1600 | 300kg | 18m | 3300*1880*2080 | 3600 |
SJY1.0-4 | 2100*1200 | 1000kg | 4m | 2260*1350*1100 | 900 |
SJY1.0-6 | 2100*1200 | 1000kg | 6m | 2250*1350*1210 | 1400 |
SJY1.0-8 | 2100*1200 | 1000kg | 8m | 2260*1350*1600 | 1580 |
SJY1.0-10 | 2100*1200 | 1000kg | 10m | 2250*1350*1770 | 1700 |
SJY1.0-12 | 2550*1500 | 1000kg | 12m | 2750*1720*1820 | 2560 |
SJY1.0-14 | 2800*1500 | 1000kg | 14m | 3100*1720*1820 | 2760 |
SJY1.5-6 | 2150*1500 | 1500kg | 6m | 2300*1720*1500 | 1750 |
SJY1.5-8 | 2150*1500 | 1500kg | 8m | 2260*1720*1600 | 2050 |
SJY1.5-10 | 2150*1500 | 1500kg | 10m | 2300*1720*1770 | 2250 |
SJY1.5-12 | 2550*1500 | 1500kg | 12m | 2750*1720*1820 | 2700 |
SJY1.5-14 | 2820*1600 | 1500kg | 14m | 3100*1880*1960 | 3350 |
2.Product Details
3.Safety Feature
4.Packing Detail
